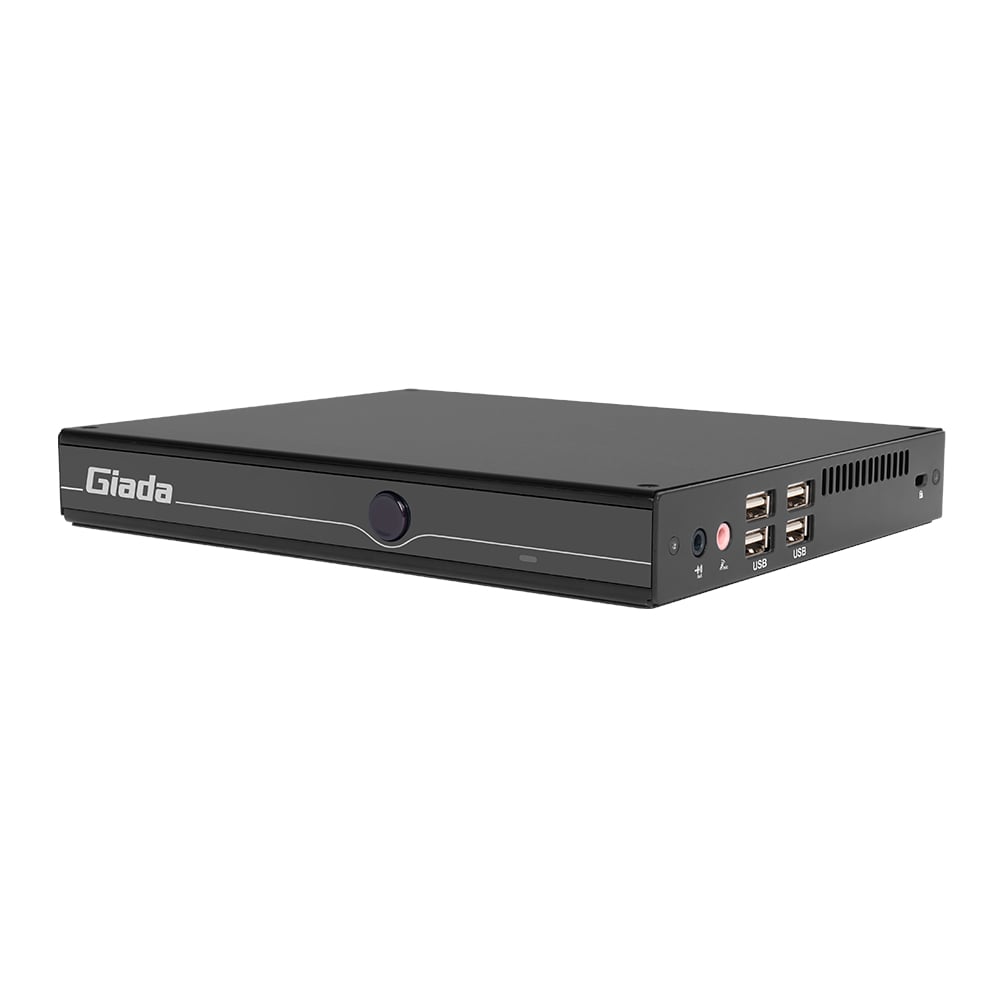

Giada F108D Intel N100 1xDDR4 3200 Mhz 2xHDMI
Giada F108D Intel N100 1xDDR4 3200 Mhz 2xHDMI
My Store
Pickup available at 370 2nd Avenue
Usually ready in 24 hours
The Giada F108D Signage Player adopts Intel® Alder Lake-N processors, giving you good performance while featuring a low-power range from 6-15W. The book-size embedded PC is specially designed for digital signage and kiosk applications. The slim embedded PC supports rich I/O ports, including dual COM ports, 6 USB Type-A and dual LAN ports. It can also be easily integrated into vending machines, self-service and check-in kiosks. The digital signage player also comes with built-in Intel® UHD Graphics. It has a DP and two HDMI ports, supporting resolutions up to 4096 x 2160@60Hz. With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device run noise-free and dustproof.
FEATURES:
- Intel® Processor N100
- DDR4 3200MHz memory support
- Intel UHD onboard graphics
- Up to 4k resolution support
- 1x DP and 2x HDMI output
- Support for Wi-Fi/Bluetooth module
- Small form factor design
SPECIFICATION:
- CPU: Intel® Processor N100 (Fanless)
- Turbo Frequency: 3.40GHz
- Chipset: SoC
- Processing Units: 4 Cores
- TDP: 6W
- System Memory: Up to 16 GB, 1 x SO-DIMM DDR4-3200 MHz
- Storage: 1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD
- Watchdog Timer: Yes
- Auto Power On: Yes
- RTC: Set up independently every day, a week as a cycle
- Remo on: No
- Power Requirement: DC-IN, 19 V/2.37 A
- Construction: Metal
- Operating System: Windows 11 (64bit) /Linux Ubuntu (64bit)
- Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
- Certifications: CE, FCC Class B, UKCA
- Humidity: 95% @ 45°C (non-condensing
- Network Controller: 2 x Realtek RTL 8111H Gigabit Ethernet
- Ethernet Interface: 2 x RJ45
- Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6
- Mobile Network: 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot
- GPU: Intel® UHD Graphics
- Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0
- Display Interface: 1 x DP (Max.4096 x 2160 @60Hz), 2 x HDMI (Max.4096 x 2160 @60Hz)
- USB: 2 x USB3.2 Gen2, 4 x USB2.0
- Serial Port: 2 x RS232
- Audio: 1 x MIC-IN, 1 x AUDIO-OUT
- Button: 1 x Power on, 1 x CLR-CMOS
- Antenna: 2 x Connector for Wi-Fi/BT
- Product Dimensions: 18.9 x 14.8 x 2.6 cm
WHAT'S IN THE BOX:
- Giada F108D Alder Lake-N Book Size Signage Player - Black x1
